Journal of Biosystems Engineering. December 2018. 303-310
https://doi.org/10.5307/JBE.2018.43.4.303


ABSTRACT


MAIN

  • Introduction

  • Materials and Methods

  •   Investigation into physical properties of foxtail millet and sorghum seeds

  •   Foxtail millet and Sorghum Sowing Factor Experiment

  • Results and Discussion

  •   Physical properties of foxtail millet and sorghum seeds

  •   Factor test results

  • Conclusions

  • Conflict of Interest

Introduction

Cereal crops such as foxtail millet and Sorghum have increased in demand as functional foods; however, as of 2009, the self-sufficiency rate of cereal crops in South Korea was 48.5% for foxtail millet, 39.3% for sorghum, and 26.5% for other cereal crops, with a total self- sufficiency of only 27.9% (Ministry of Agriculture, Food and Rural Affairs, 2012). In the case of cereal crops such as foxtail millet and sorghum, the characteristics of cultivation, the variety of products, and the methods of cultivation vary from region to region. The mechanization of planters, harvesters, and threshing machines etc has not been determined, and the labor time required for cereal crops is 4 times higher than for beans and 7 times higher than for rice. The rate of mechanization is only 20–60% in total, with sowing and transplantation at 4.0%, and harvesting at 12.1% (Rural Development Administration. 2012) Sowing and harvesting occupies 56% of the total working time, among which the working time required for 10a of sowing is 5.6 h and 10a of thinning is 8.9 h, which accounts for 25% of the total working time (Choi et al., 2015). In the case of seeding work, cereal crops are smaller in size than other seeds, and it is difficult to sow exactly a single seed, and after sowing a large amount of seeds, most farmers apply the thinning work separately. This indicates that significant labor is required. To increase the labor saving of cereal crops such as foxtail millet and sorghum, the mechanization of sowing and harvesting is urgently needed. To mechanize the seeding, it is necessary to develop a foxtail millet and sorghum seeder that can minimize the sowing and thinning required by allowing the precise sowing of minimization.

Through advanced research on a seed-metering device for a sowing machine(Rhee et al., 2000). found a method to measure the grain size using a morphological analysis for a sowing machine design, and through an analysis of the particle sizes of various seeds reported that the aspect ratio (length/width, or L/W) is the most suitable form factor for use in a seeder design.

The performance of the seed metering device, which regularly discharges the seeds in the sowing machine, is an important factor determining the performance of the entire sowing machine, and the success rate of sowing is directly affected by the success rate of the seed metering device (Yang et al., 2014; Lee et al., 2014). Seeders are classified according to the breeding method used. The grooved rollers have grooves formed at regular intervals on the surface of the rollers, and as the rollers rotate, the seeds are discharged; thus, the structure is simple and the discharge amount can be easily controlled (Ryu and Kim, 1997). As a result of previous studies, with a groove- roller type sowing machine for small seed sowing, such as with foxtail millet and sorghum, using an existing sowing seeder, it was considered necessary to improve the breeding equipment to increase the seedling accuracy through a reduction in the high missed seeding rate and the seeding of large numbers of seeds (Choi et al., 2014).

In this study, for the development of sowing machines capable of small seed sowing, such as for foxtail millet and sorghum, experimental equipment for machine seeding was fabricated. In addition, based on factorial experiments, the design factors of the system suitable for foxtail millet and sorghum are investigated.

Materials and Methods

Investigation into physical properties of foxtail millet and sorghum seeds

For the sowing of one to three small foxtail millet and sorghum seeds, to obtain the basic data necessary for the design of a seed metering device that can precisely meter the seeding, the physical properties of the foxtail millet and sorghum were examined. The specific materials used in this study are ‘HwangKeum’ foxtail millet and ‘Nappungchal’ sorghum seeds. The seed shape, size, weight of 1,000 seeds, and fineness ratio reflecting the physical characteristics of foxtail millet and sorghum were measured during the design of the seed-metering system. The size of the seeds was determined through a random sampling of 100 foxtail millet and sorghum seeds. Used the multimedia imaging microscope (Scope 2001) was magnification 2.16 to 14 times and the camera had 130 mega pixels , as shown in Figure 1. After capturing the image of the seed, shown in Figure 2, using the multimedia image microscope, the length (L) and width (W) were measured using the calibration function, as indicated in Figure 3. The values of L and W were calculated from the measured fineness ratios. To determine the size distribution of the foxtail millet and sorghum seeds, a grain size analysis was conducted using testing sieves with mesh sizes of 7, 8, 10, 12, 14, 16, and 18, as shown in Figure 4. A grain size analysis was conducted using a sieve of a standardized mesh. Foxtail millet and sorghum seeds were passed through a standard netting in turn, and the weight percentage of the remaining seeds in the corpuscles was determined.

http://static.apub.kr/journalsite/sites/ksam/2018-043-04/N0770430406/images/ksam_43_04_06_F1.jpg

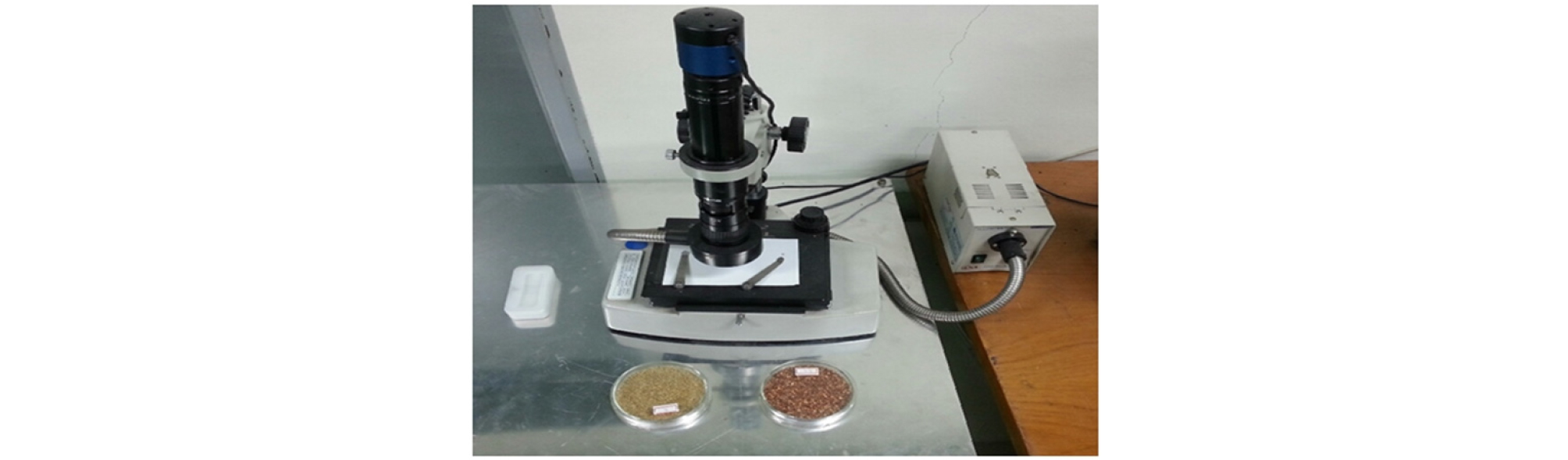

Figure 1.

Multimedia video microscope (Scope 2001).

http://static.apub.kr/journalsite/sites/ksam/2018-043-04/N0770430406/images/ksam_43_04_06_F2.jpg
Figure 2.

Seed image observed in multimedia video microscope.

http://static.apub.kr/journalsite/sites/ksam/2018-043-04/N0770430406/images/ksam_43_04_06_F3.jpg

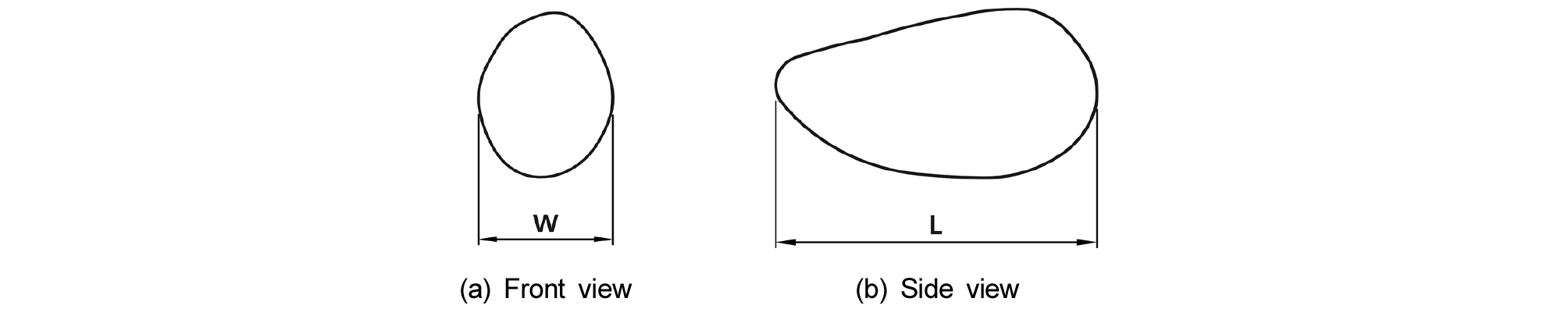

Figure 3.

Measurement of seed size in foxtail millet and sorghum.

http://static.apub.kr/journalsite/sites/ksam/2018-043-04/N0770430406/images/ksam_43_04_06_F4.jpg

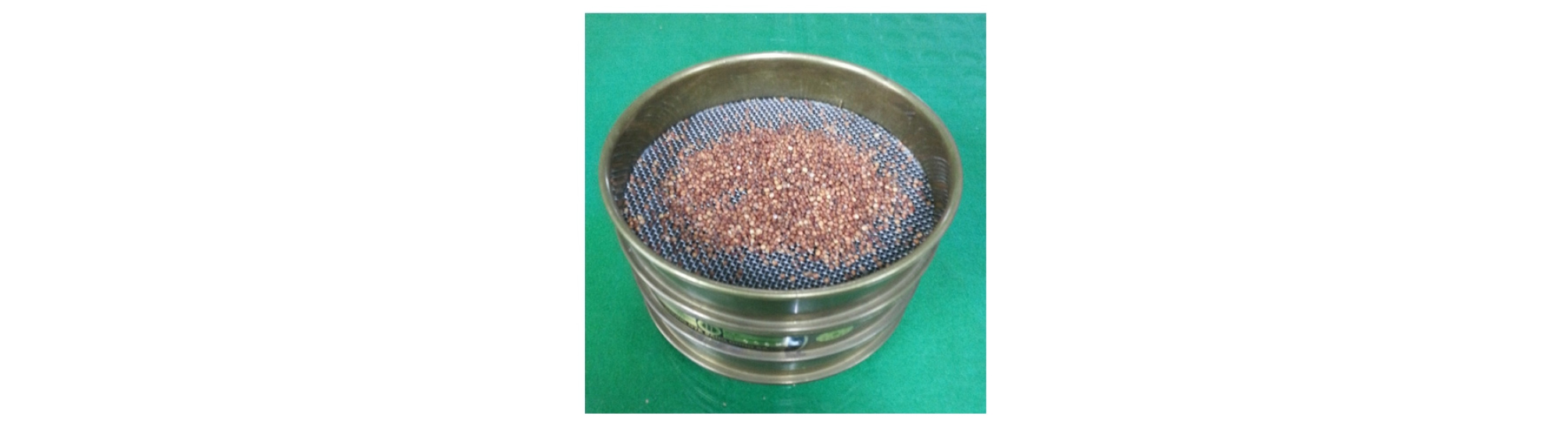

Figure 4.

Grain size analysis.

Foxtail millet and Sorghum Sowing Factor Experiment

To investigate the design factors of the seed-metering device of the sowing machine, which can sow one to three small foxtail millet and sorghum seeds, a factor experiment of a groove roller-type device that can precisely sow such seeds was conducted.

Grooved-roller type seed-metering device is possible to control the amount of seeding changing the size of grooves. It is possible to control the size of the grooves of the transmission roller and regulate the amount of the seeds. A seed-metering roller was fabricated based on the size and shape of the seed-metering roller, and a sowing factor experiment was conducted.

Production of sowing factor test equipment

The equipment used in the sowing factor experiment was composed of a driving wheel, seed-metering device, drive motor, and speed controller, as shown in Figure 5. The driving motor driven to rotate the seed-metering rollers in the transmission section to sow the seeds in the transmission roller grooves. The specifications of the drive motor and speed controller are shown in Table 1.

http://static.apub.kr/journalsite/sites/ksam/2018-043-04/N0770430406/images/ksam_43_04_06_F5.jpg

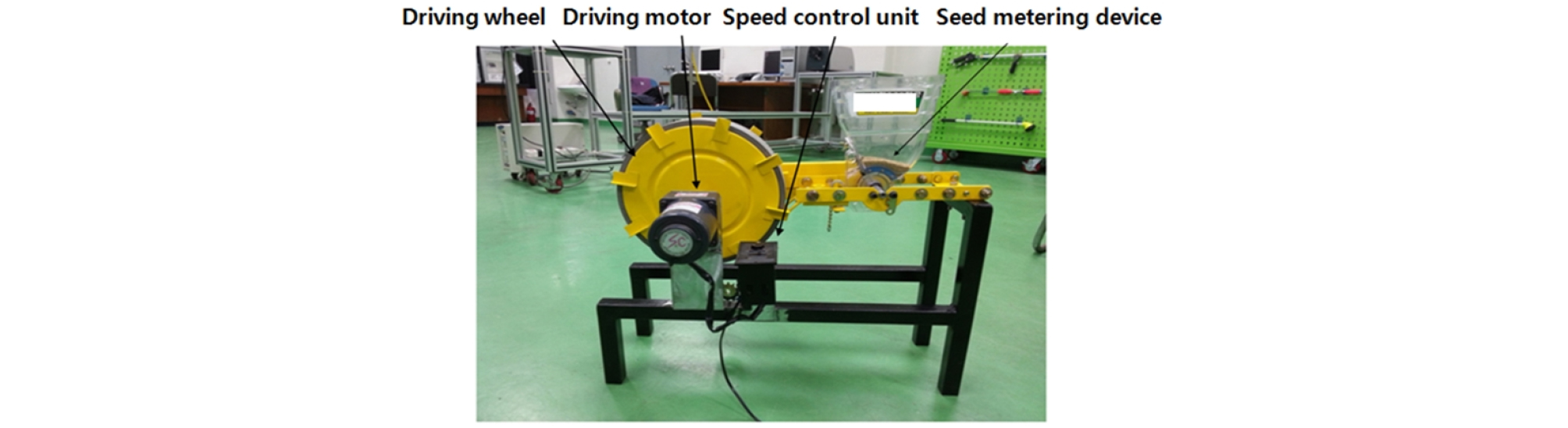

Figure 5.

Experimental device of seeding factors.

Table 1. Specifications of the motor and speed control unit used in the experimental device

Photo Item Specifications
Motor http://static.apub.kr/journalsite/sites/ksam/2018-043-04/N0770430406/images/ksam_43_04_06_T1(1).jpg Model S8I25GE-V12
Company SPG
Poles 4
Output 25 W
Voltage 1∅ 220 V
Freq. 60 Hz
Speed Range 90-1,700 rpm
Speed control unit http://static.apub.kr/journalsite/sites/ksam/2018-043-04/N0770430406/images/ksam_43_04_06_T1(2).jpg Model SUA25lB-V12
Company SPG
Voltage 1∅ 220 V
Freq. 60 Hz
Speed Regulation 5%
Speed Range 90–1,700 rpm
Range Temp.: 0-40°C RH: 0-85%

The diameter of the seed-metering roller was set to 60 mm in consideration of the transmission rollers of currently available grooved roller seeders. A chain gear ratio of 13:11 was set for the drive wheel, and the seed-metering roller was set to six grooves for foxtail millet and four grooves for sorghum. The planting distance was 14 cm for foxtail millet and 21 cm for sorghum seeds.

As shown in Figure 6, the seed-metering roller grooves of the sowing factor test apparatus were modified to have a square shape or an elliptical shape in the longitudinal direction. Thus, one to three foxtail millet and sorghum seeds were arranged in a row. In the case of a conventional circular seed-metering roller groove, as shown in Figure 6, more seeds are distributed between the gaps where the seeds are formed, and more seeds are separated and discharged than the target amount. The existing groove shape was improved in the L direction to minimize the gap between the seeds and to precisely control the desired seed amount. The main design parameters of the longitudinal seed-metering roller groove are shown in Figure 7.

http://static.apub.kr/journalsite/sites/ksam/2018-043-04/N0770430406/images/ksam_43_04_06_F6.jpg

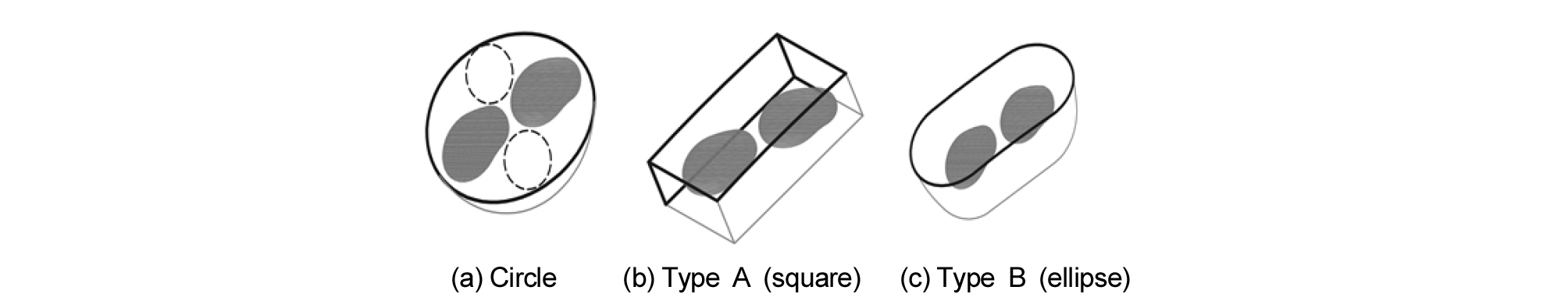

Figure 6.

Groove types of seed-metering roller.

http://static.apub.kr/journalsite/sites/ksam/2018-043-04/N0770430406/images/ksam_43_04_06_F7.jpg

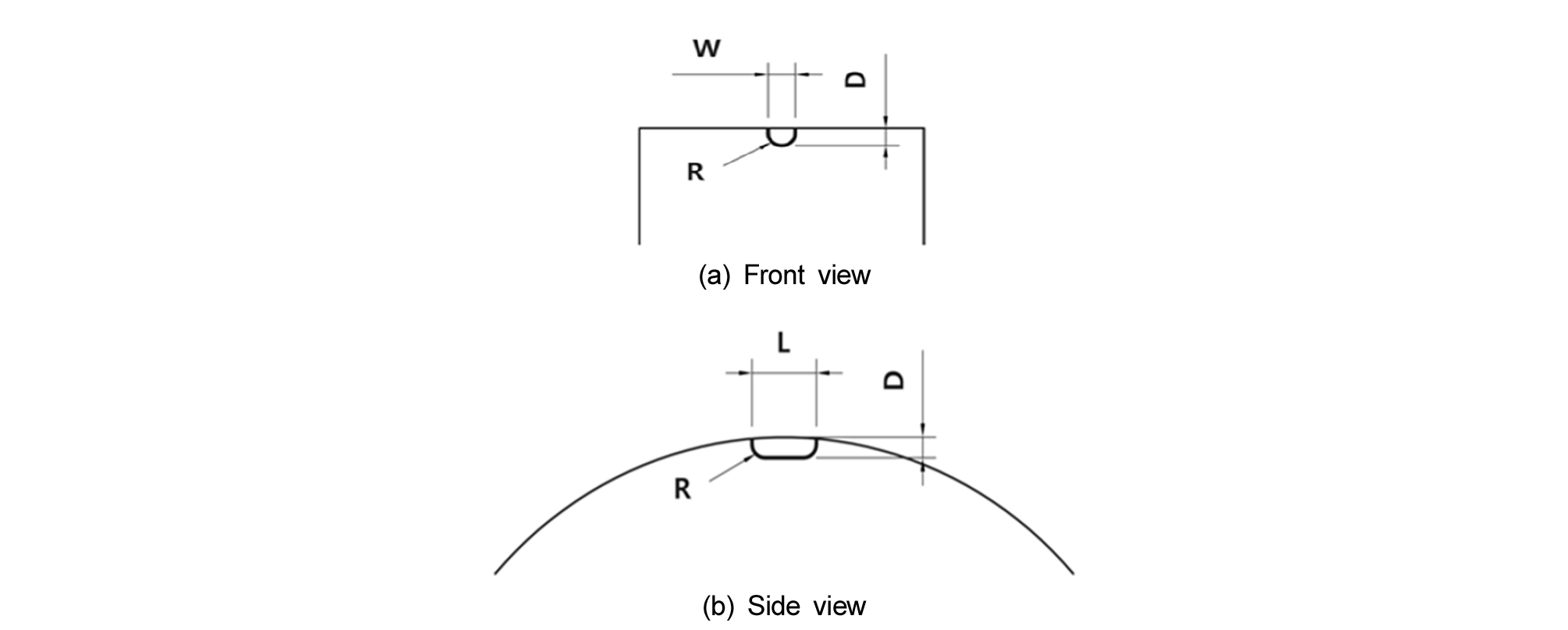

Figure 7.

Design factors of groove shape in roller-type metering device.

In the figure, W represents the width of the groove, and should be somewhat larger than the unidirectional length of the foxtail millet and sorghum seeds, L represents the length of the groove and should be somewhat larger than the length of the desired amount of seeds arranged in a row in the longitudinal direction, D represents the depth of the groove and should be somewhat larger than the unidirectional length of the seeds, and R is the curvature of the groove, and prevents the seeds and foreign matter from sticking together. If the values of the above design variables are smaller than the suggested length, the seeding will be poor or the seed will be damaged, and if it is too large, the seeding accuracy will be decreased.

Sowing factor test

The width, length, and depth of the roller grooves for the factorial experiment were set in consideration of the main design parameters of the longitudinal roller seed metering roller grooves based on the physical properties of the foxtail millet and sorghum seeds. The curvature (R) preventing the foxtail millet seeds and foreign matter from sticking in the grooves is 0 for the square shape, and 1.0 for the elliptical shape. In the case of sorghum seeds, the factor according to the groove shape was added by setting 0 for a square shape and 1.5 for an ellipse. The width, length, depth, and shape factors of the seed- metering roller grooves are shown in Table 2, and the transmission rollers were manufactured using a total of 60 factors (24 for foxtail millet and 36 for sorghum).

Table 2. Specifications of groove-type seed-metering roller used in the experimental device

Seed Width (mm) Length (mm) Depth (mm) Type
Foxtail millet 2.0, 2.5 3.0, 4.0, 5.0 1.5, 2.0 Square, Ellipse
Sorghum 4.0, 4.5 8.0, 8.5, 9.0 3.0, 3.5, 4.0 Square, Ellipse

Foxtail millet and sorghum seedlings were applied according to the sowing method, and based on an experiment conducted on a transplanting machine by the Agricultural Science and Technology Research Survey (Rural Development Administration, 2012). The sowing roller of the sowing factor test apparatus was rotated ten times at a speed of 127.4RPM, and the number of seeds discharged from each groove was measured. The results of this procedure were repeated three times, and the seeding performance of the foxtail millet and sorghum seeds was analyzed. A multivariate analysis of variance (MANOVA) was conducted using the SAS program (V. 9.2, SAS Institute, Cary, USA), and Duncan’s multiple test (p = 0.05) was used to test the level of significance between treatment types.

Results and Discussion

Physical properties of foxtail millet and sorghum seeds

The measured L, W, and fineness ratio of foxtail millet and sorghum seeds are shown in Table 3. The weight of 1,000 seeds was measured as 2.43 g for foxtail millet and 17.5 g for sorghum. According to the shape, the fineness ratio of the seeds is 1.0–1.14 for circular, 1.14–1.33 for short elliptical, 1.33–2.0 for elliptical, and 2.0 or more for long elliptical shapes (Choi, 1986). The average fineness ratio is 1.3 for foxtail millet, and 1.1 for sorghum. The foxtail millet has a short elliptical shape, and the sorghum is close to circular; however, when considering the maximum value, all shapes are elliptical, with 1.7 for foxtail millet and 1.4 for sorghum.

Table 3. Physical properties of foxtail millet and sorghum

Seed Length (mm) Width (mm) L/W
Ave Max Min S.D Ave Max Min S.D Ave Max
Foxtail millet 2.11 2.87 1.71 0.24 1.64 1.99 1.26 0.12 1.3 1.7
Sorghum 3.68 4.34 2.96 0.34 3.32 3.94 2.29 0.32 1.1 1.4

The results of the particle size distribution of foxtail millet and sorghum based on a grain size analysis are shown in Figure 8. As the analysis results show, the particle size distribution of foxtail millet is fine, with approximately 97% of the seeds remaining when applying a 1.4 mm mesh. In the case of sorghum, 52% of the seeds remained for a 2.8 mm mesh, whereas 35% remained for a 2.36 mm mesh. The particle size distribution of sorghum was not irregular. In the seed size analysis, the deviation in L and W of sorghum was higher than that of the foxtail millet. The difference between the maximum and minimum values of L and W was about 1.0 mm for foxtail millet, and 1.5 mm for sorghum. The results of the particle size analysis show that the grain size was not uniform, and that the variation in grain size was high owing to the grain size distribution.

http://static.apub.kr/journalsite/sites/ksam/2018-043-04/N0770430406/images/ksam_43_04_06_F8.jpg

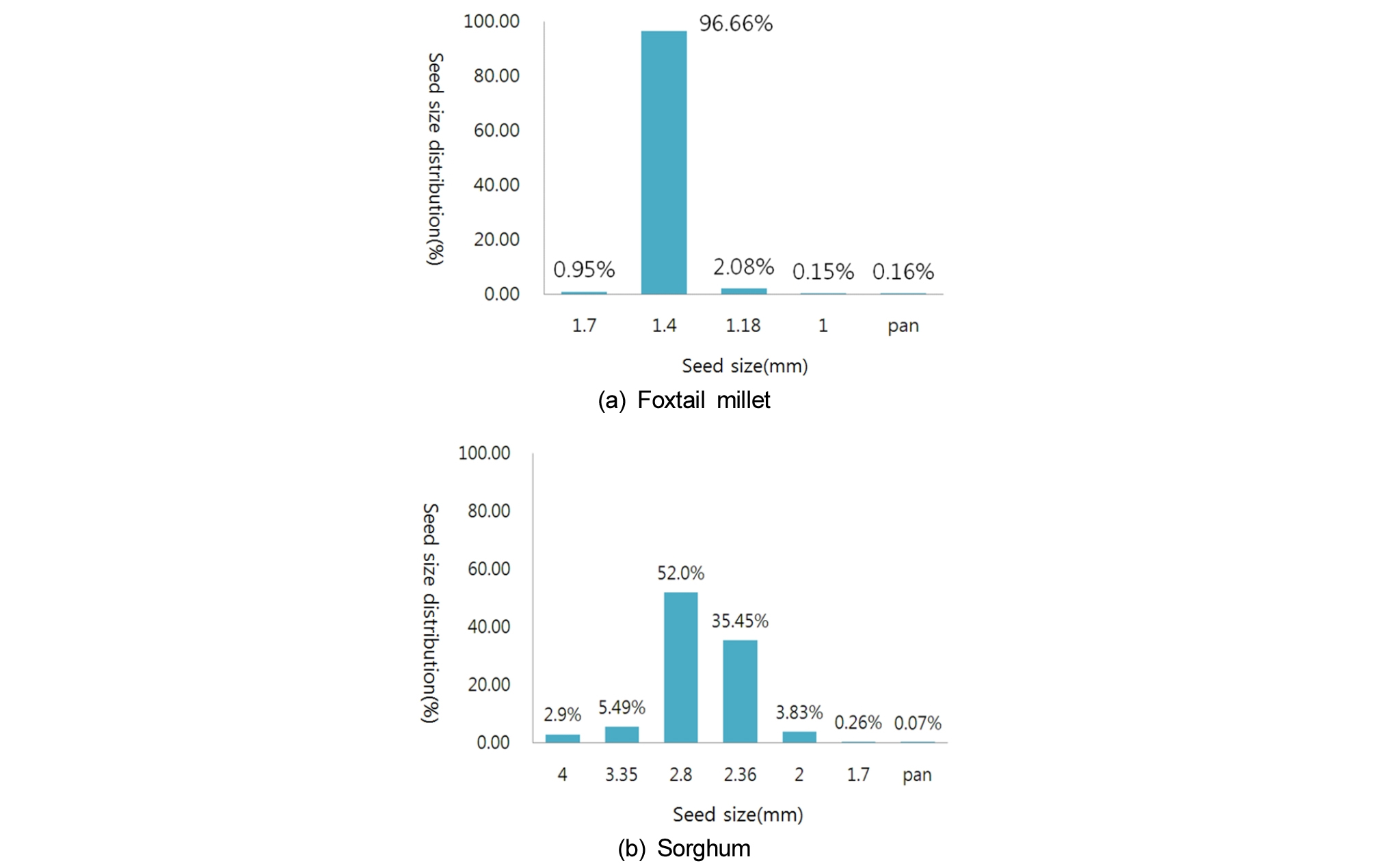

Figure 8.

Seed size distribution based on grain size analysis results for foxtail millet and sorghum.

http://static.apub.kr/journalsite/sites/ksam/2018-043-04/N0770430406/images/ksam_43_04_06_F9.jpg

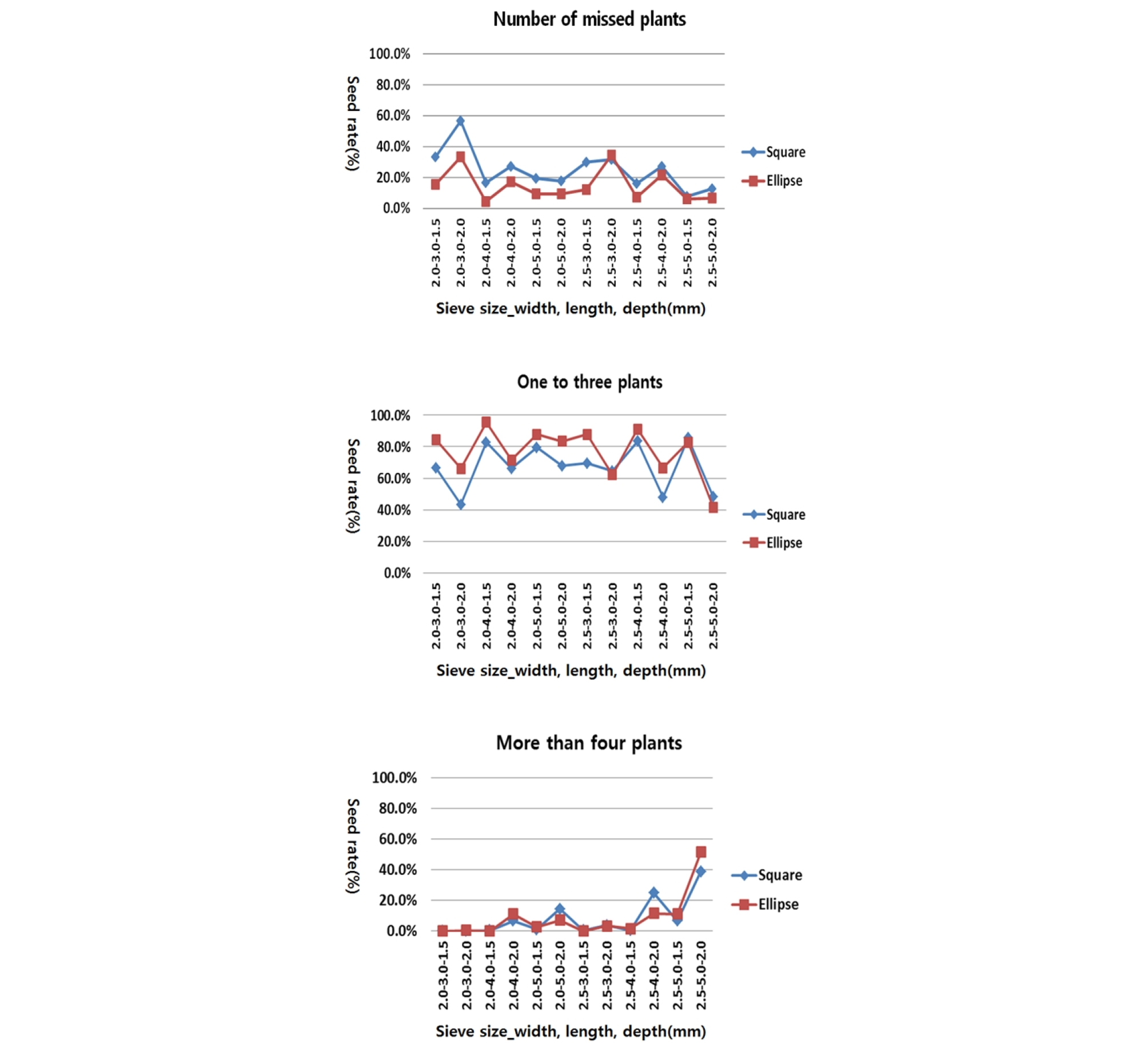

Figure 9.

Results based on groove type of metering roller for foxtail millet planting tests (width, length, and depth).

Factor test results

Sowing performance of foxtail millet

A MANOVA was conducted using the GLM model of the SAS program. The results of Duncan’s significance test are shown in Table 4. As a result of multivariate analysis of miss-planted rate, one grain sowing rate, two grains sowing rate, three grains sowing rate and four grains sowing rate. It was determined that there is a significant difference between the seed-metering roller groove and the sowing rate. The length, depth, and shape factors of the seed-metering roller grooves affect the concave ratio. The effect of the width factor on the receding rate was analyzed to be low. For a seeding rate of over four grains, the width, length, and depth factors were affected. The shape of the grooves was determined to be a factor of low significance.

Table 4. Duncan’s multiple range test results on seeding rates of foxtail millet based on seed-metering roller groove factors

Factors seeding rates
Missing plant one two three more than four
Width 2.0 mm 0.217a 0.307a 0.316a 0.123b 0.037b
2.5 mm 0.178a 0.183b 0.289a 0.220a 0.129a
Length 3.0 mm 0.309a 0.431a 0.209c 0.040c 0.010c
4.0 mm 0.172b 0.163b 0.443a 0.151b 0.072b
5.0 mm 0.112c 0.141b 0.256b 0.324a 0.167a
Depth 1.5 mm 0.149b 0.303a 0.369a 0.158b 0.021b
2.0 mm 0.247a 0.187b 0.236b 0.185a 0.145a
Type square 0.247a 0.221b 0.275b 0.175a 0.082a
ellipse 0.148b 0.269a 0.330a 0.169a 0.084a
* Duncan’s multiple range test (p = 0.05)

As a result of the experiment on the sowing type according to factors such as the width, length, depth, and square/elliptical shapes, the best sowing performance was for a low yield rate, with a low seeding rate of four grains or more, or a high seeding rate of one to three grains. When the groove of the seed-metering roller had an elliptical width of 2.0 mm, a length of 4.0 mm, and a depth of 1.5 mm, the seeding rate for one to three grains was 95.6% (20.6% for one grain, 72.8% for two grains, and 2.2% for three grains). In addition, the best sowing rate was 0% for four or more grains (Fig. 9).

Sorghum sowing performance

An analysis of the significance of the sorghum seeding test results was based on the width, length, depth, and shape of the seed-metering roller grooves. The MANOVA was conducted using the ANOVA analysis GLM model of the SAS program. The results of Duncan’s significance test are shown in Table 5. The results of the MANOVA on the missed planting rate, and one-, two-, three-, and four- grain or more sowing rates are described here. There is a difference in the sowing rate depending on the factors of the seed-metering roller groove. In particular, the R2 values of the two- and four-grain sowing rates were 0.86 and 0.93. All models were found to be highly significant. In the case of the missed planting rate, the width and shape of the seed-metering roller grooves were factors of influence. The effects of the length and depth factors on the cut-off rate were low.

Table 5. Duncan’s multiple range test results of seeding rates for sorghum based on seed-metering roller groove factors

Factors seeding rates
missing plant one two three more than four
Width 4.0 mm 0.126a 0.132a 0.339a 0.269b 0.134b
4.5 mm 0.053b 0.032b 0.181b 0.372a 0.361a
Length 8.0 mm 0.087a 0.093a 0.364a 0.326a 0.131c
8.5 mm 0.095a 0.087a 0.242b 0.316a 0.260b
9.0 mm 0.088a 0.067a 0.174c 0.320a 0.351a
Depth 3.0 mm 0.091a 0.092a 0.395a 0.306b 0.116c
3.5 mm 0.076a 0.078a 0.248b 0.380a 0.218b
4.0 mm 0.102a 0.076a 0.137c 0.276b 0.408a
Type square 0.131a 0.103a 0.222b 0.284b 0.260a
ellipse 0.049b 0.062b 0.298a 0.357a 0.235a
* Duncan's multiple range test (p = 0.05)

The results of the sowing experiment according to the width, length, depth, and square/elliptical shapes of the seed-metering roller grooves are shown in the graph in Figure 10. The best sowing performance was shown for a low yield rate, with a low seeding rate of four grains or more, or a high seeding rate of one to three grains. The analysis showed that an elliptical width of 4.0 mm, length of 8.0 mm, and depth of 3.0 mm of the grooves resulted in a seeding rate of 95.8% for one to three seeds (10.8% for one grain, 70.8% for two grains, and 14.2% for three grains), and 0% for four or more grains, whereas an elliptical width of 4.5 mm, length of 8.0 mm, and depth of 3.0 mm of the grooves resulted in a sowing rate of 99.2% for one to three grains (2.5% for one grain, 65.0% for two grains, and 31.7% for three grains), a missed planting rate of 0%, and a sowing rate of 0.8% for four or more grains.

http://static.apub.kr/journalsite/sites/ksam/2018-043-04/N0770430406/images/ksam_43_04_06_F10.jpg

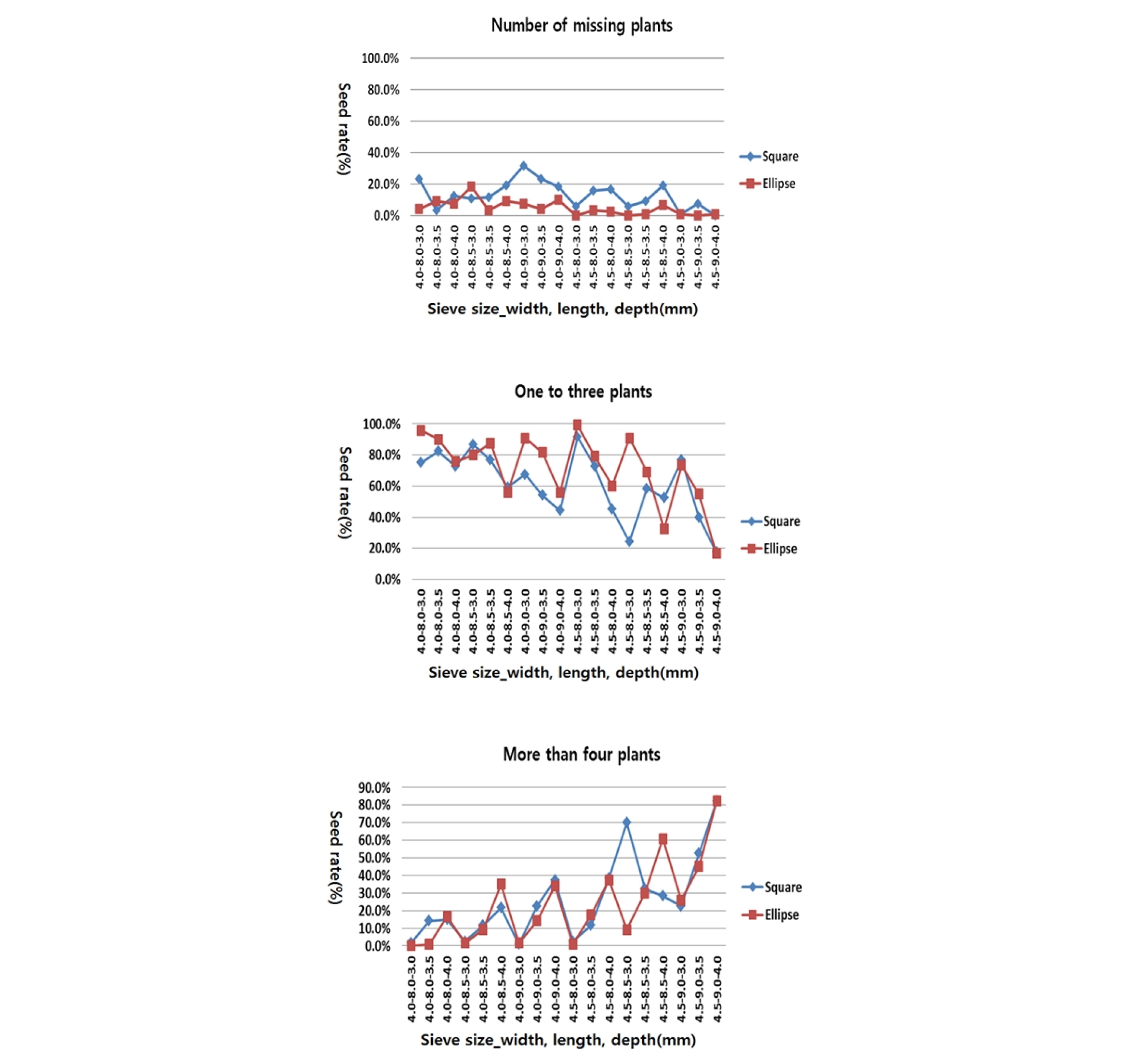

Figure 10.

Results based on groove type for metering roller in sorghum planting tests (width, length, and depth).

Conclusions

In this study, we attempted to determine the main factors for the design of seed-metering rollers of grooved sowing planters to mechanize the sowing of foxtail millet and sorghum seeds. During our experiment, foxtail millet showed a hill spacing of 14 cm, and sorghum demonstrated a hill spacing of 21 cm. A seed-metering roller was designed to sow one to three apple and orange seeds as a preparation for the test apparatus. The width, length, depth, and shape of grooves were considered as design factors of the seed-metering roller. The sowing factor experiment was designed such that when the transmission roller was rotated, the seeds of the foxtail millet and sorghum passed through the grooves of the seed- metering roller, and the seed-metering roller was replaced by this factor. The results of this experiment are as follows. The shape of the roller grooves had a significant effect on reducing the missed planting rate by protecting the seeds from becoming stuck in a screw when the groove was elliptical. In the case of the foxtail millet, the length, depth, and shape factors of the seed- metering roller grooves affected the missed planting rate. In particular, when the groove shape was elliptical, the missed planting rate was about two times lower. In the case of sorghum, the width and shape factors of the seed-metering roller grooves affected the missed planting rate. When the shape of the groove was elliptical, the missed planting rate was about three times lower.

To sow one to three foxtail millet and sorghum seeds, the following factors of the seed-metering roller grooves were shown. An elliptical shape with a width of 2 mm, length of 4 mm, and depth of 1.5 mm was found to be good for foxtail millet. In addition, an elliptical shape with a width of 4 mm, length of 8 mm, and depth of 3 mm, or a width of 4.5 mm, a length of 8 mm, and a depth of 3 mm, was found to be good for sorghum seeds.

Conflict of Interest

The authors have no conflicting financial or other interests.
